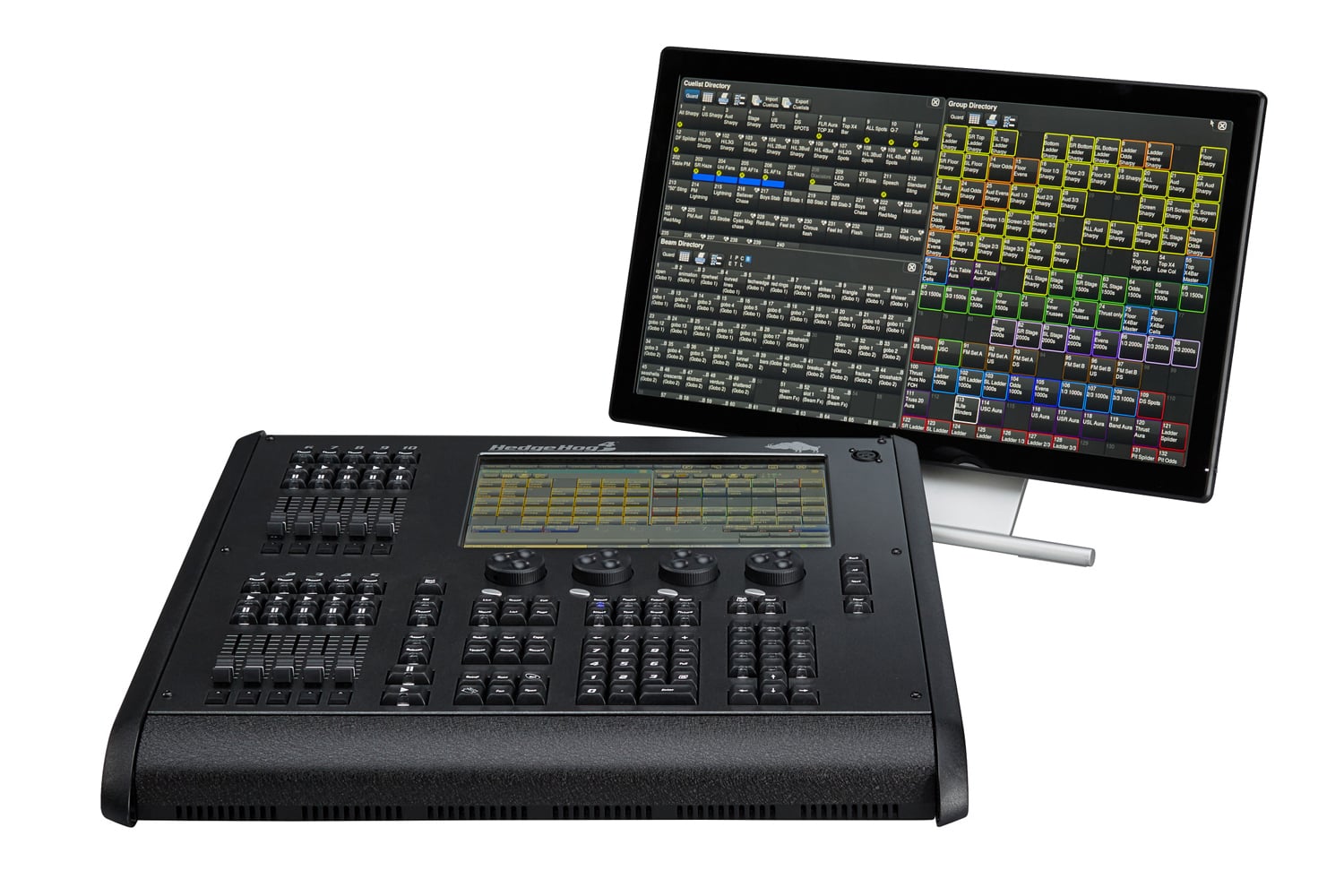

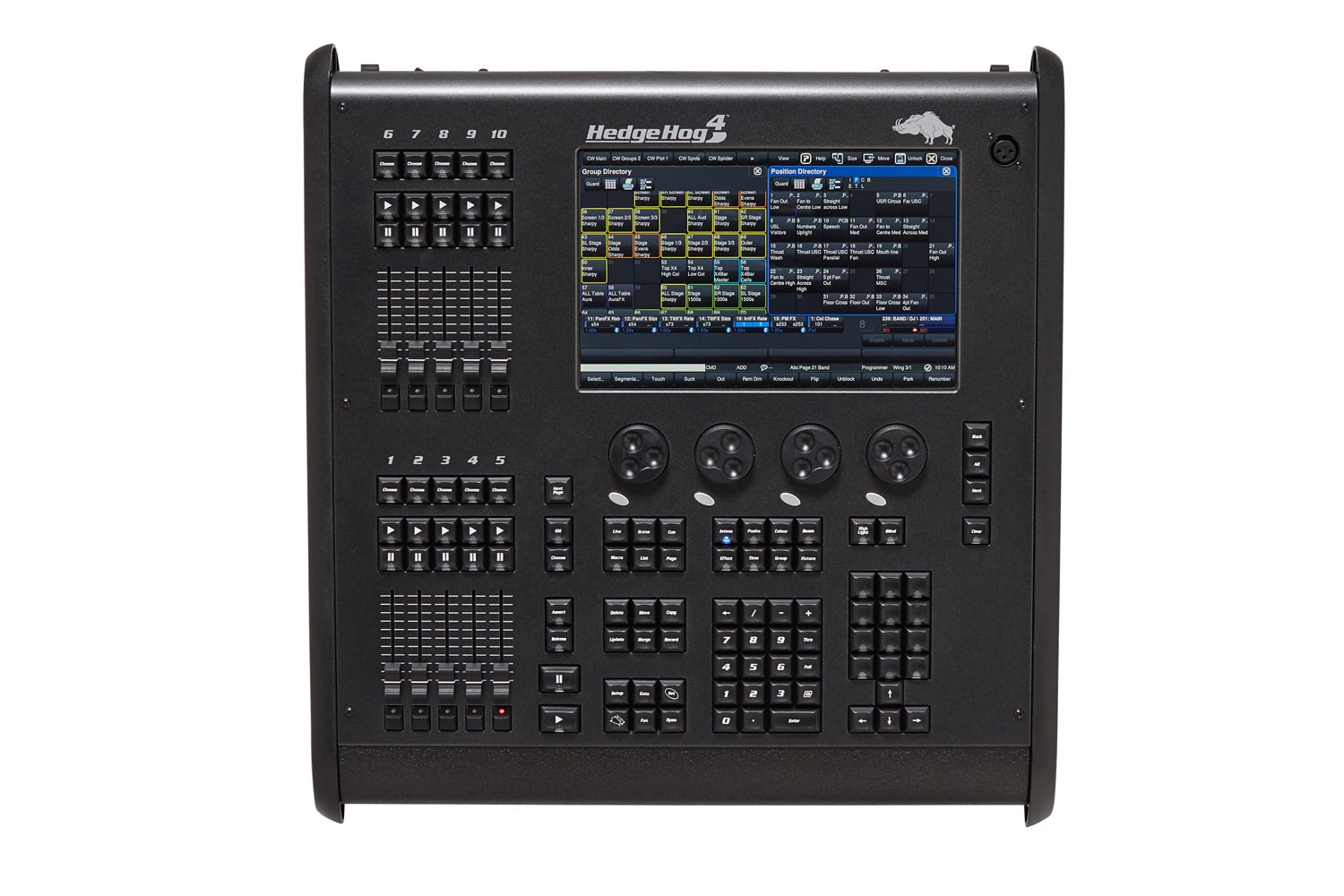

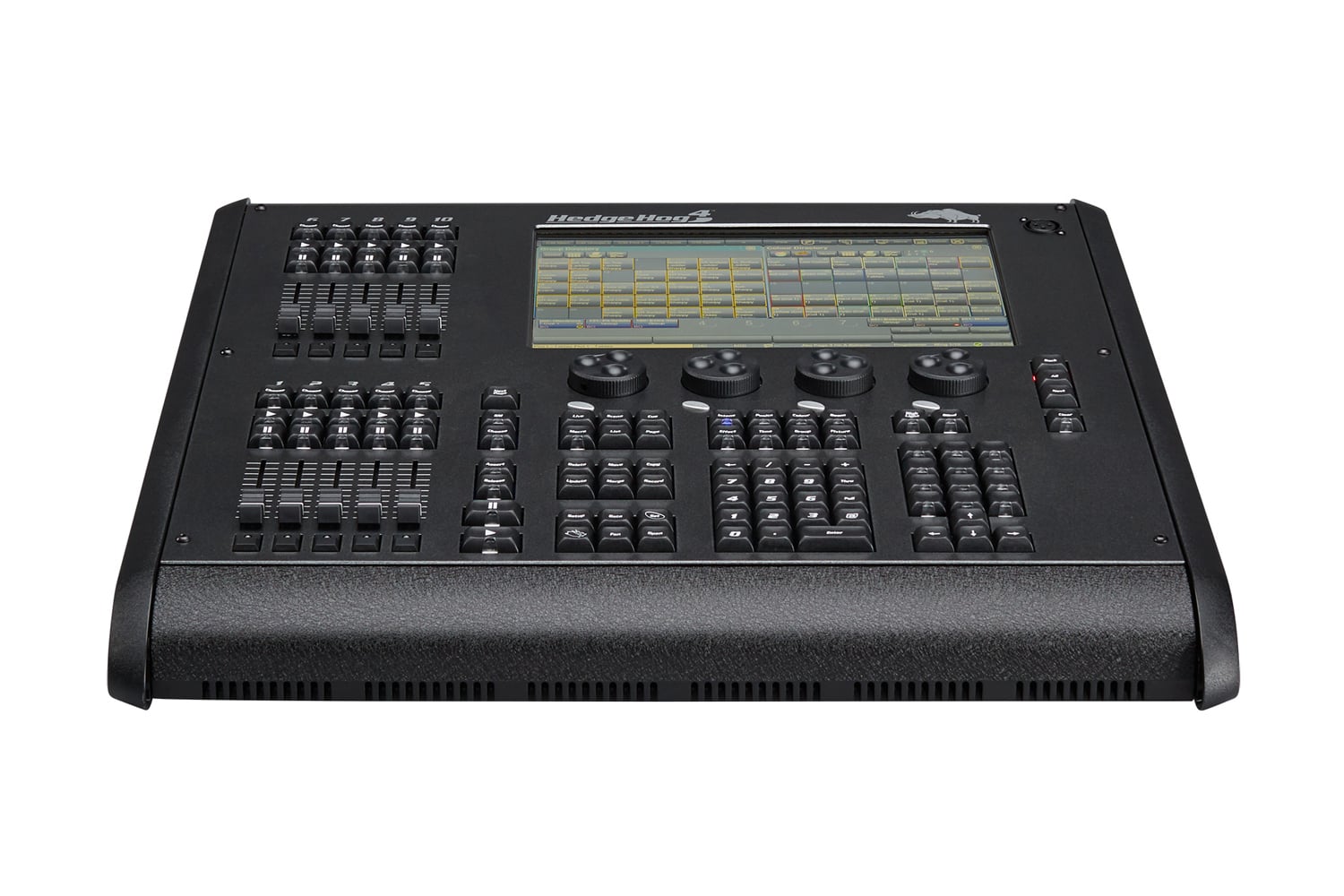

HEDGEHOG4X

Product Features
– Robust Hog 4 OS operating system
– Hog-Net connector
– Fixture-Net connector
– Unlimited simultaneous crossfades
– Internal solid-state hard drive
– One internal 12-inch 10-point touchscreen
– Two external display port monitors/touchscreens supported
– 10 manual playback faders
– Four expanded-wheelset encoders
– 12 user-assignable function keys
– Kensington security slot
– One dimmable white desk light included
– Two USB flash drives for show storage and console recovery included
– Dust cover included
– Custom road case available
– Compliance: ETL, CETL, CE
– Capture Lighting Design Software, Solo

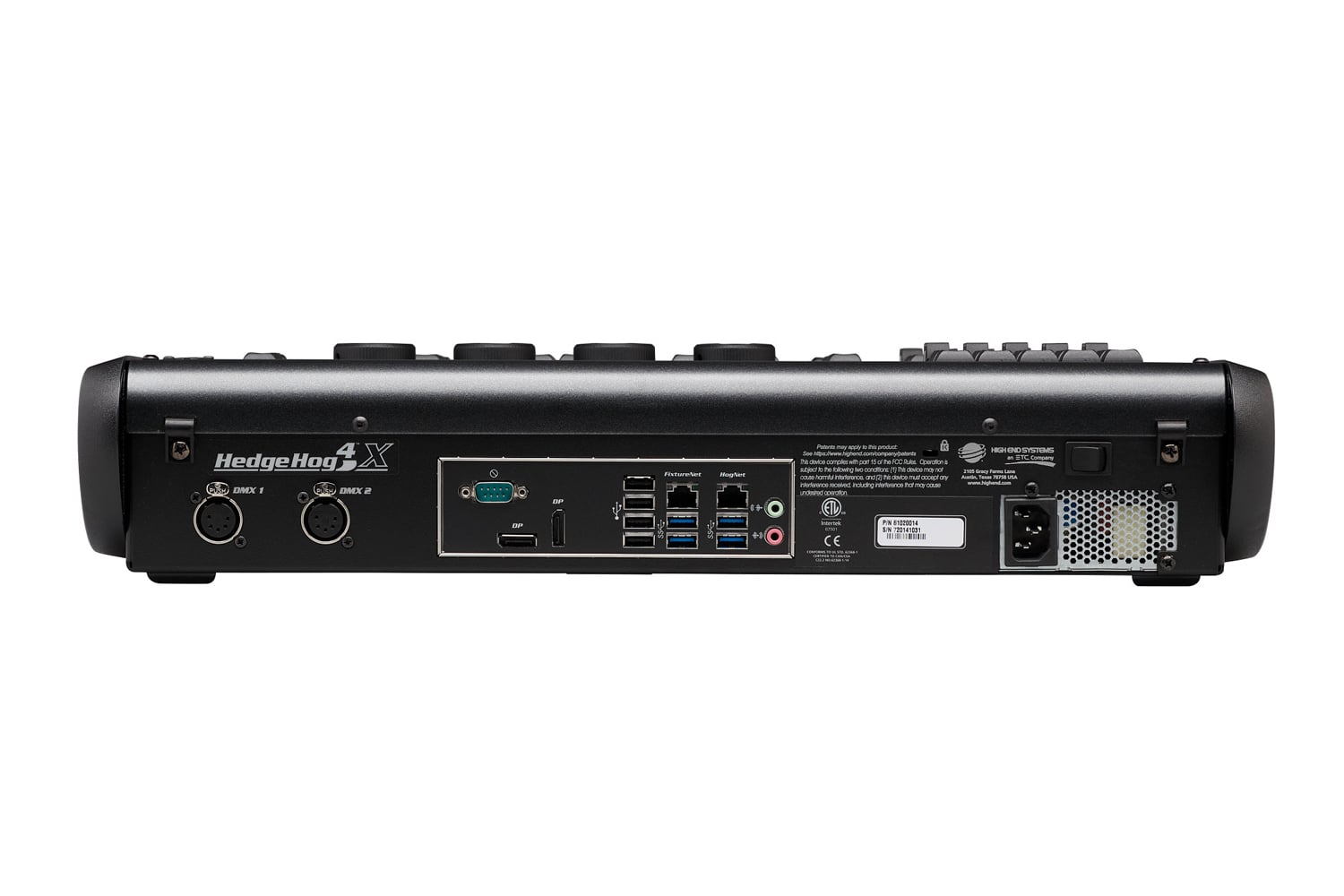

Connectivity
– Local output processing: 3,072 output channels, expandable with DMX processors HPU or DP8K
– Local DMX-512 outputs: 2x Neutrik 5-pin XLR
– MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
– Connectivity with visualizers via Fixture-Net Art-Net or E1.31/sACN, unrestricted by local output capacity
– Supports USB playback and expansion Wings
– USB 2.0 ports: 4 rear
– USB 3.0 port: 4 rear

Electrical
– Mains power: 100-250VAC, 50/60Hz, max 55W
– Mains connector: IEC320 C13
– Fuse: 1x 5x20mm 5AT fuse

Weights and Dimensions
– Width: 527mm / 20.8
– Depth: 555mm / 21.9
– Height: 101mm / 4.0
Weight: 7.7kg / 17lb
