FOCUSWASH400

Original price was: 2,216.48€.Current price is: 1,690.00€. Including VAT

Adj 400W Moving Head Wash Fixture

SKU FOCUSWASH400 Categories ,

Availability: In Stock

Share:

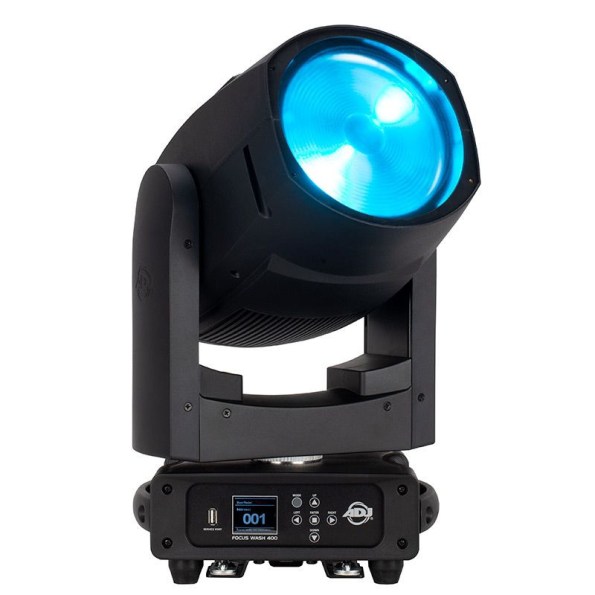

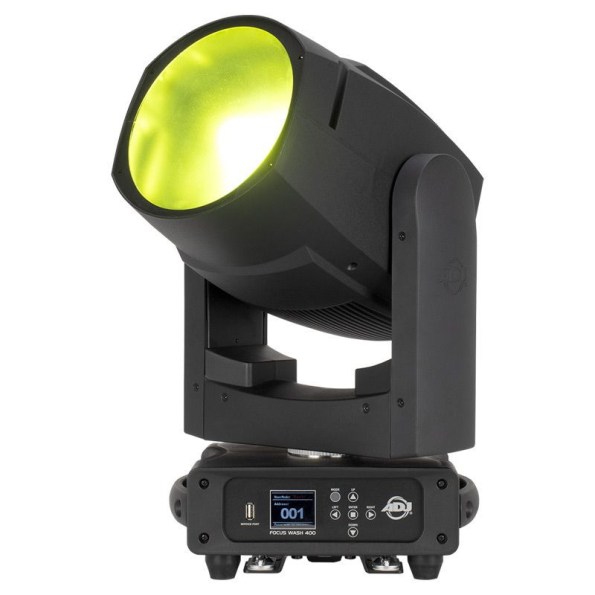

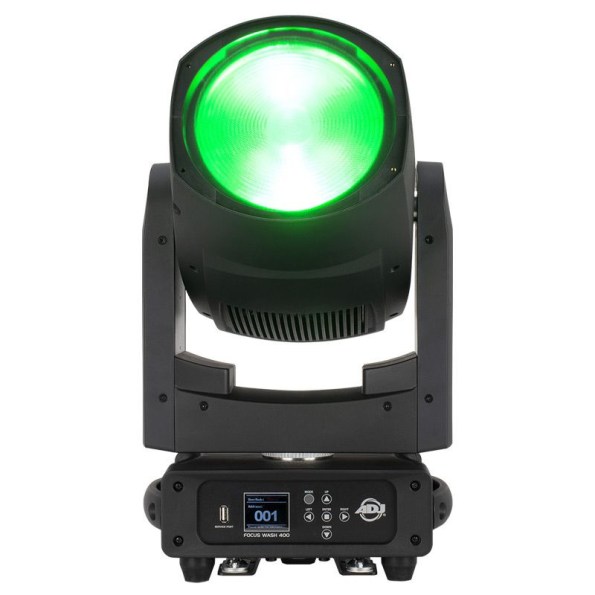

The ADJ FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL Red, Green, Blue, Amber, Cyan and Lime LED engine. A 6-inch Fresnel lens with 9 to 43° motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K – 10000K, as well as, preset white color macros 2700K, 3200K, 4000K, 5600K and 6500K. In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.

The FOCUS WASH 400’s unique color engine produces a high CRI of 92+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM remote device management protocol support.

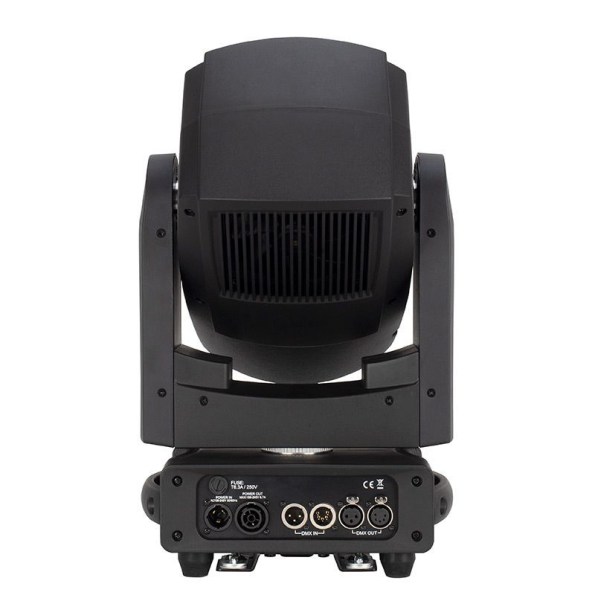

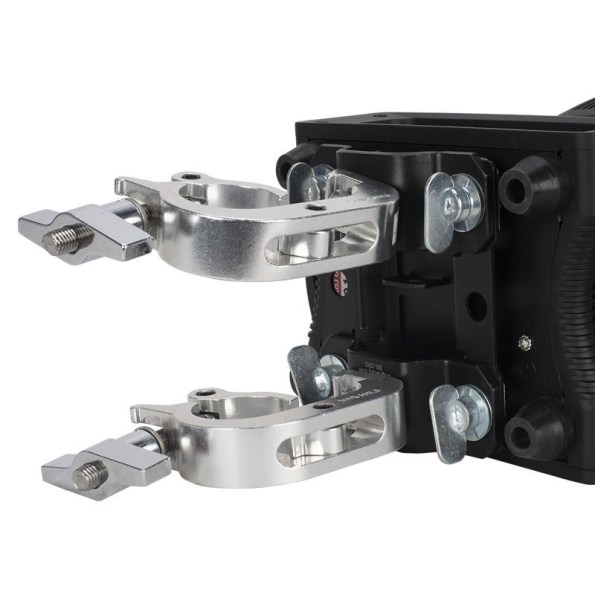

The fixture comes standard with IP65 locking power In/Out connections, locking 3-pin 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply AC100-240V, USB port to conveniently update firmware, and omega brackets with two hanging points.

Source:
• Source: 400W RGBACL LED Engine
• 7783 Lumen
• 730 Lux@5m/43°
• 4451 Lux@5m/9°
• Average lifetime: approximately 50,000 hrs

Optics:
• Zoom range: 9 – 41°
• Field Angle: 19 – 54°
• Fresnel Lens
• Motorized Zoom

Control:
• DMX-512 Protocol
• 5 DMX Channel Modes Basic 17, Standard 22, Extended 24, CMY Standard 18 or CMY Extended 24
• RDM compatible Remote Device management
• 16bit dimming 0-100
• 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve
• Various strobe effects
• LCD Menu Display with 6-button Control
• 3 Fan settings : Auto, High and Low Noise

Colors:
• RGBACL Color Mixing Red, Green, Blue, Amber, Cyan, Lime
• CRI: 94
• Preset Color Temperatures 2700k, 3200k, 4000k, 5600k and 6500k

Construction:
• Metal casting with ABS housing

Electrical:
• Multivoltage : 100-240V 50/60Hz
• Power Draw : 438W

Connections:
• Locking 3- 5-pin DMX In/Out
• IP65 Locking Power In/Out

Dimensions Weight:
• Dimensions: 213 x 278 x 568mm
• Weight: 10,7 kg.

Included accessories:
• Snoot
• 1×40° Linear Lens
• 2 Omega Brackets
• Safety Cable
• IP65 Locking Power Cable

FOCUSWASH400.pdf
