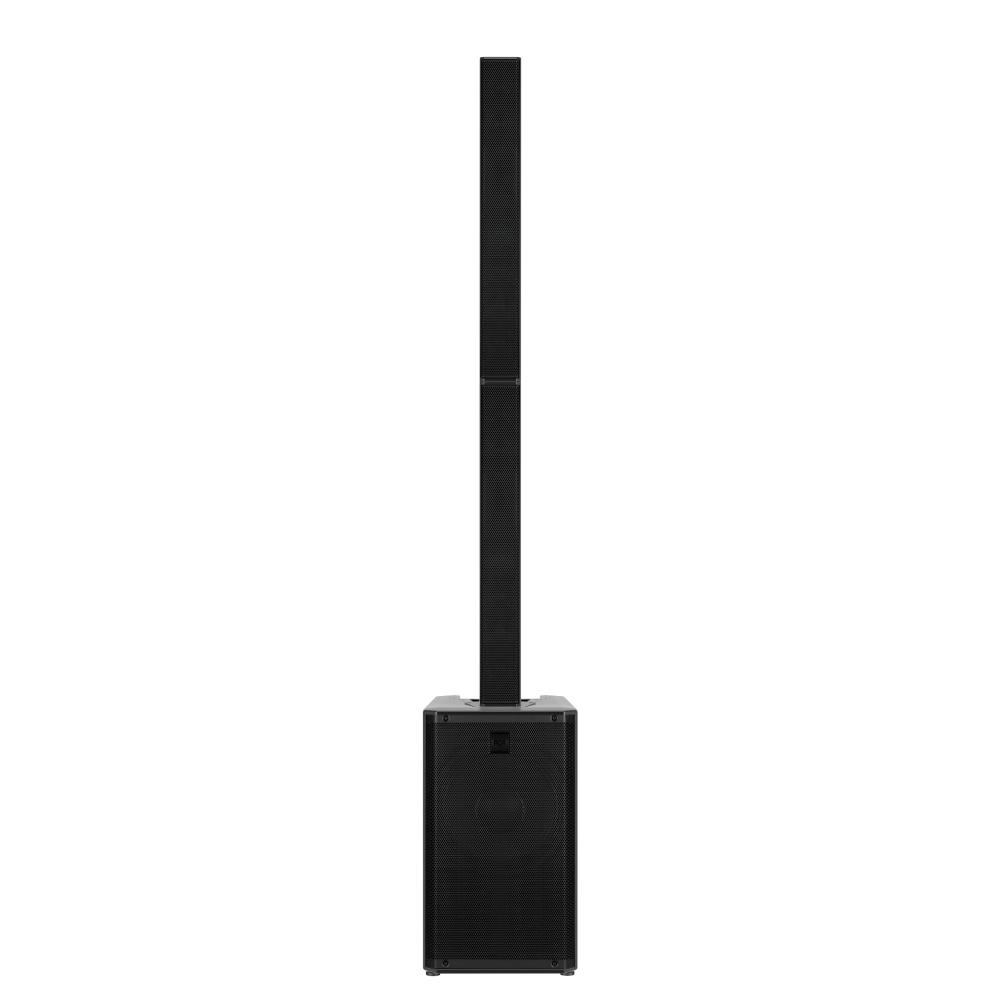

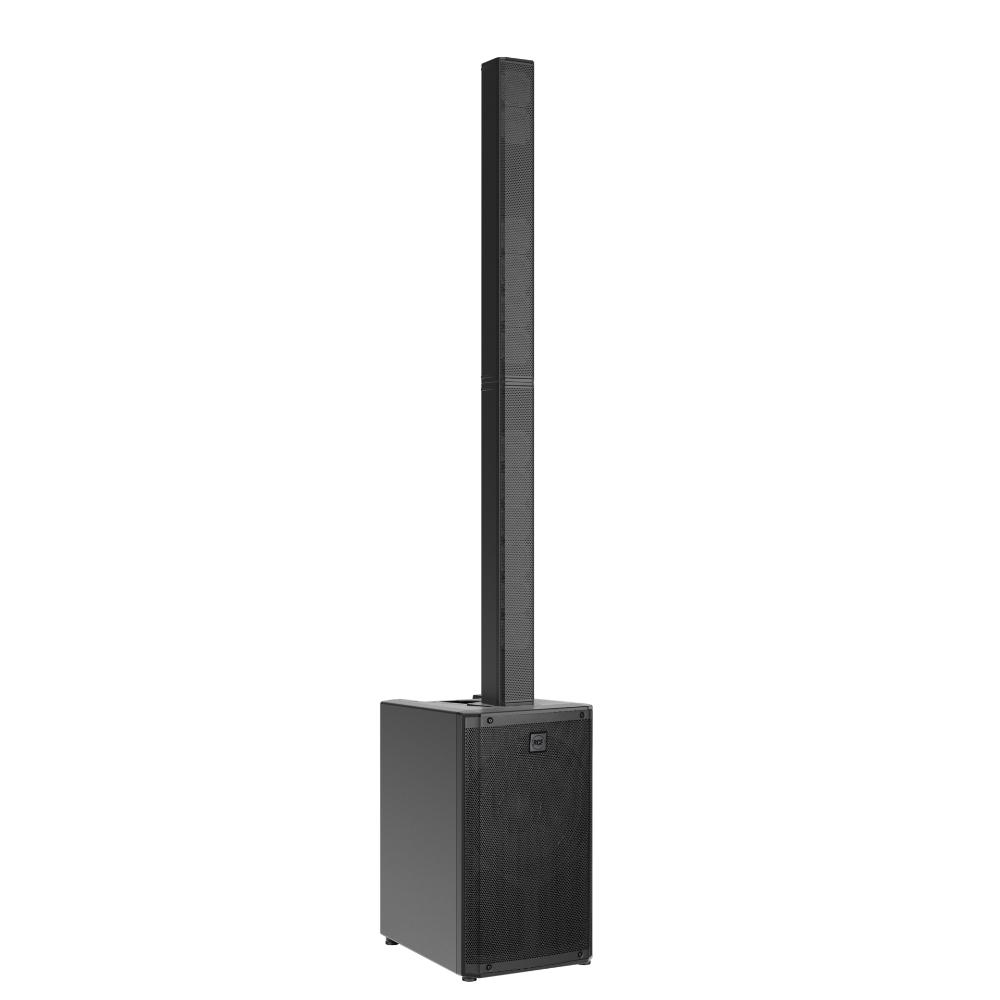

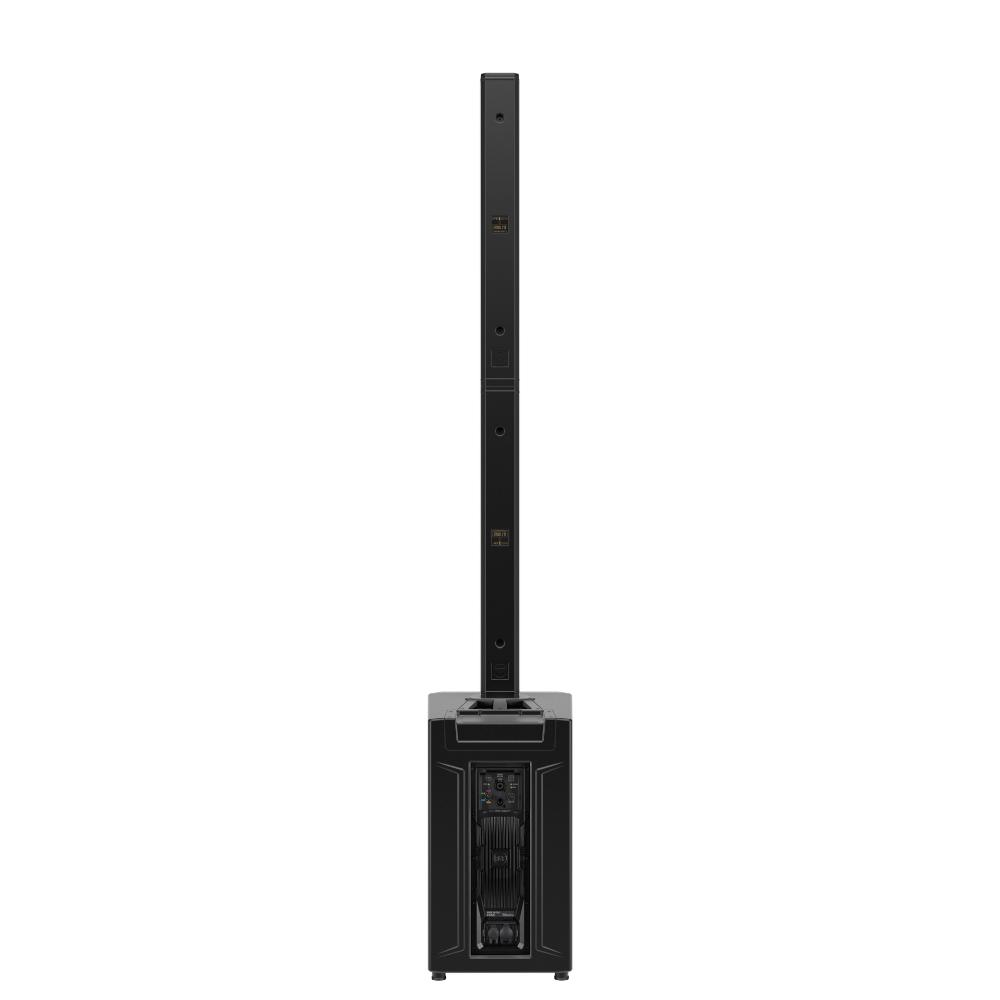

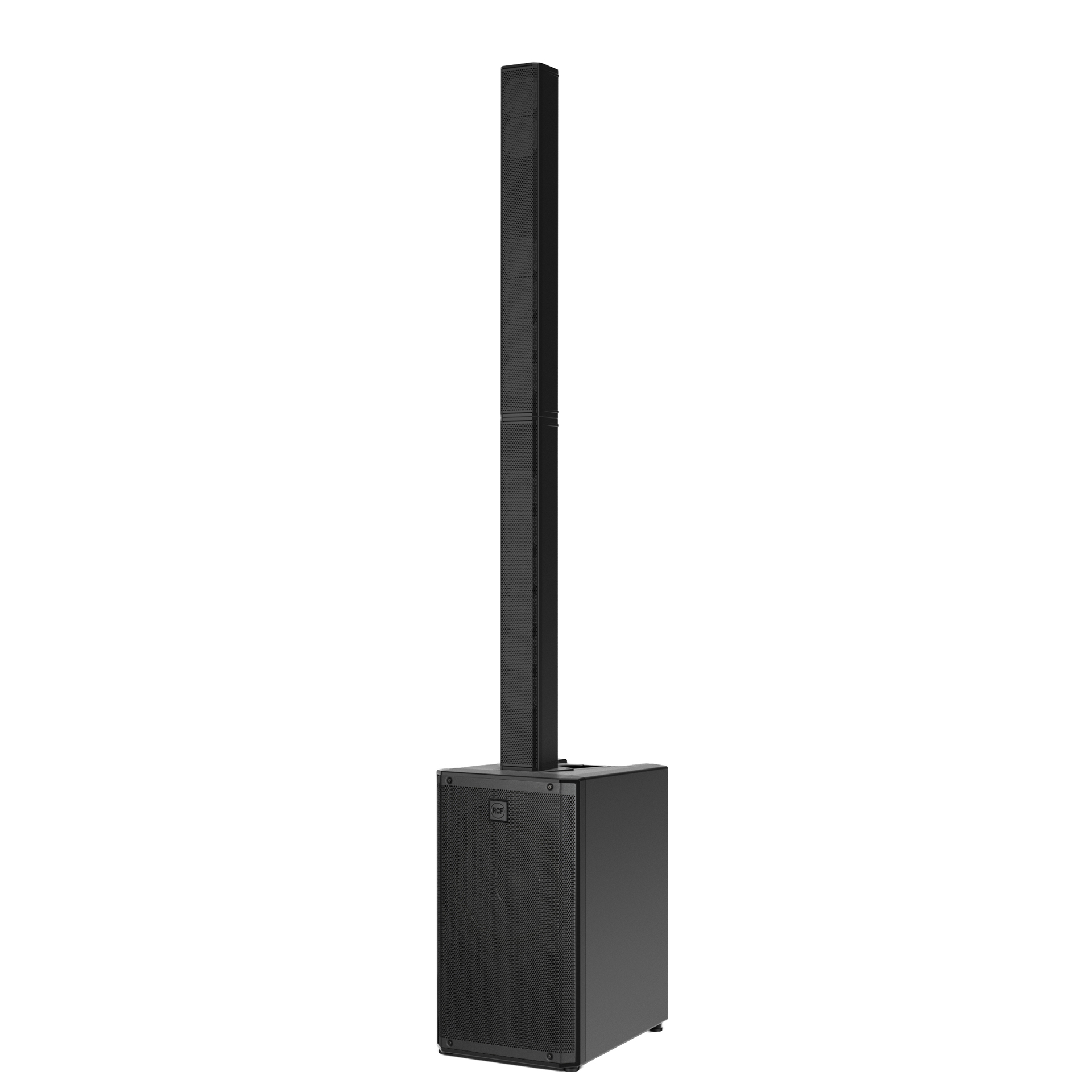

EVOXJ11

RCF EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

Features
– 132 dB Max SPL
– 3500 W Class-D Amplifier – Built-In DSP
– 1.75” Neo Compression Driver – 120° X – 40° True Resistive Waveguide
– 12 × 3” Full-Range Neo Transducers
– 12” High-Power Woofer
– Enhanced Coverage And Clarity
– Composite Cabinet
– Sleek, Road-Ready Design

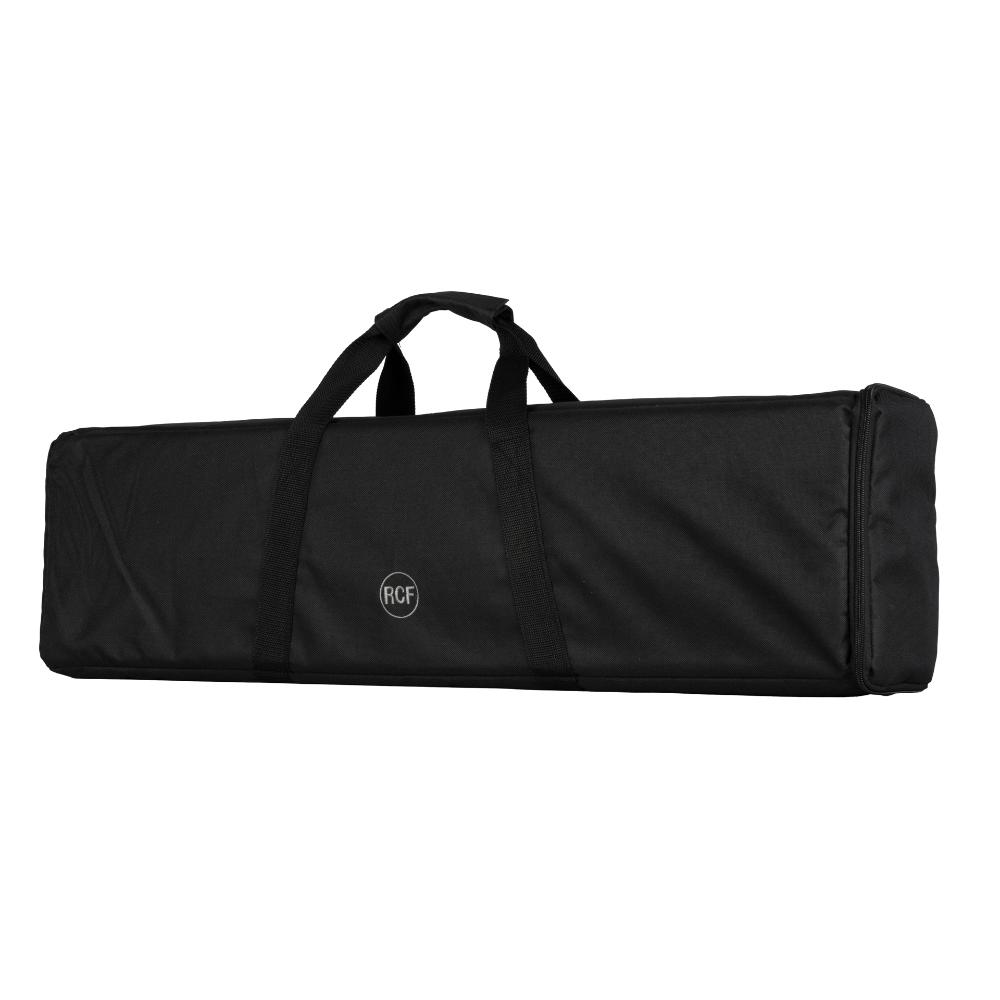

– Top Speaker Padded Carrying Bag Included

Specifications
Acoustical specifications
– Frequency Response: 37 Hz – 20000 Hz
– Max SPL @ 1m: 132 dB
– Horizontal coverage angle: 120°
– Vertical coverage angle: 40°

Transducers
– Compression Driver: 1 x 0.75 neo, 1.75 v.c
– Fullrange: 12 x 3.0 neo, 1.0 v.c
– Woofer: 1 x 12, 2.5 v.c

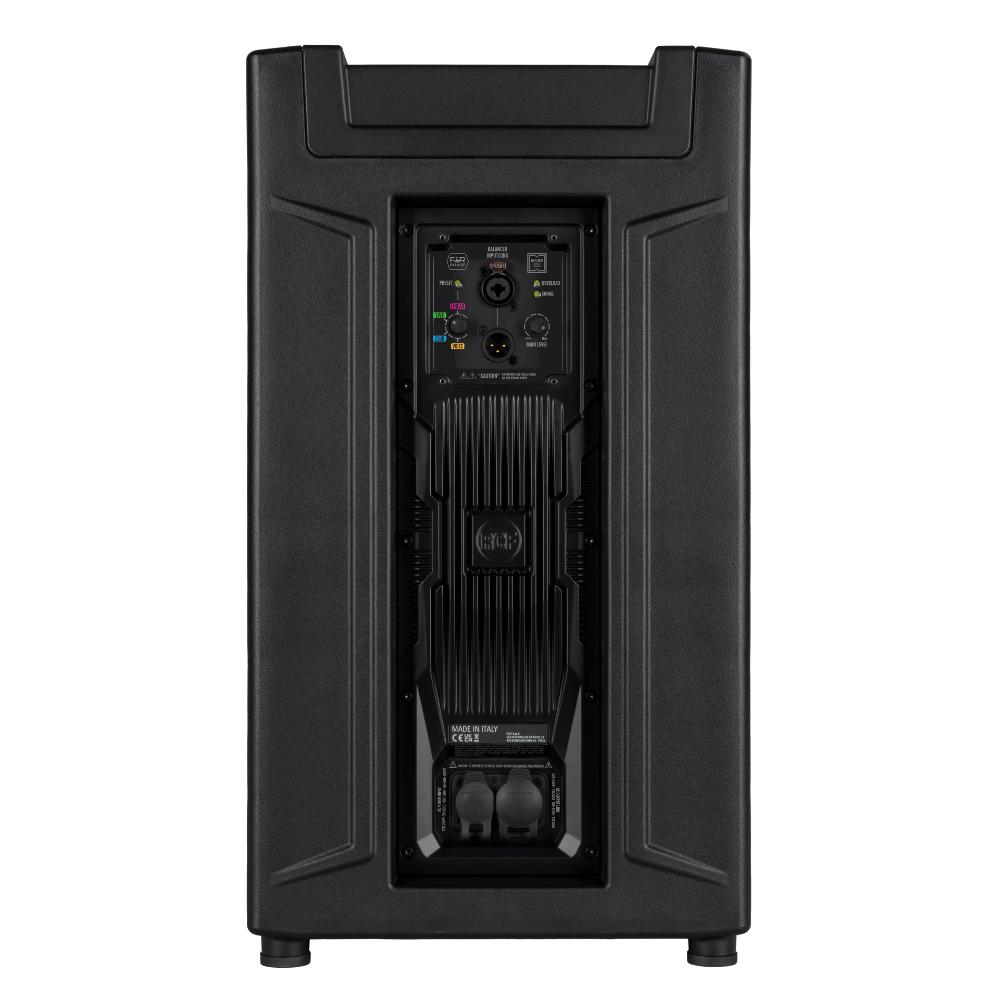

Input/Output section
– Input signal: bal/unbal
– Input connectors: Combo XLR/Jack
– Output connectors: XLR
– Input sensitivity: +4 dBu

Processor section
– Crossover Frequencies: 160 Hz/1800 Hz
– Protections: Thermal, RMS
– Limiter: Soft Limiter
– Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Power section
– Total Power: 3500 W Peak
– High frequencies: 1500 W Peak
– Low frequencies: 2000 W Peak
– Cooling: Convection
– Connections: Powercon TRUE1 TOP
IN/OUT

Standard compliance
– Safety agency: CE compliant

Physical specifications
– Cabinet/Case Material: PP Composite
– Handles: 1 Top
– Pole mount/Cap: Quick-fit socket
– Grille: Steel
– Color: Black, White – RAL 9003

Size / Weight
– Height: 2080 mm / 81.89 inches
– Width: 350 mm / 13.78 inches
– Depth: 463 mm / 18.23 inches
– Weight: 29 kg / 63.93 lbs
